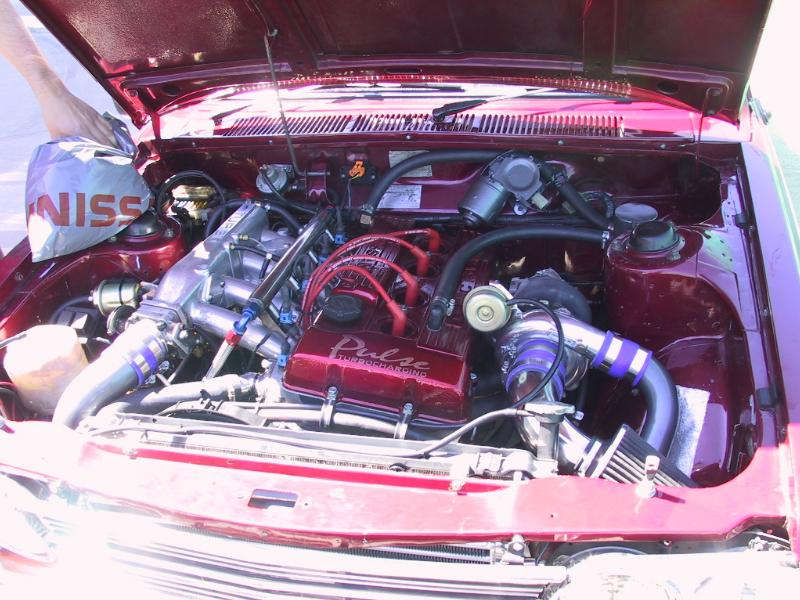

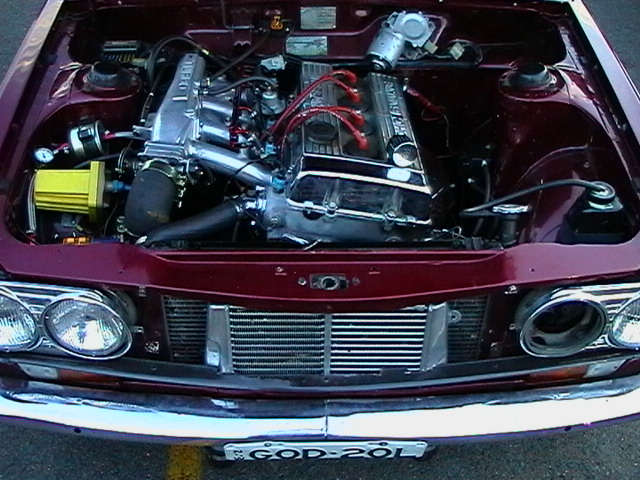

Head: Custom Ported and Polished Head
High Tension Performance Valve Springs
Bigger Cams (Revability 8000RPM+)
Ceramic Coated (red) Rocker Cover

Engine Block: JE Forged Racing Pistons
Shotpeened Rods
Custom Brass O-Ringed Block
Inside of Block Specially Painted and Race Prepped
Modified Timing Cover and Oil Pump

Inlet Manifold: Modified Inlet Manifold
Bigger Throttle Body
4 x 1000cc Rochester Injectors
Malpassi Fuel Regulator
Custom Fuel Fail

Exhaust Manifold: Custom Exhaust Manifold and Dump Pipe
Heat Wrapped and Ceramic Coated

Turbo: Turbonetics T3/4 Super 60 Super V Trim Turbo
(500HP off the Shelf)
0.83 Rear Housing
60mm T04 Front

Intercooler: Custom Made Plasmaman Intercooler
Polished Finish

Fuel/Ignition and ECU: Brand New Haltech E6K
Running Sequential Injection
MSD6A Ignition Module
Braided Fuel Lines
Bosch Merc High Volume/Pressure Fuel Pump
Primer Pump and Surge Tank

Driveline: NissanTransmission:  Modified Enlargened Transmission Tunnel
Gearbox: Rare Conversion R33 Skyline Gearbox to suit FJ20, with High Performance Solid Clutch and Billet
Flywheel. Custom Tailshaft
Differential: Nissan R200 3.9LSD Diff

Brakes:  Front Datsun 240K Twin Piston Callipers on 240K Struts
Standard Rear Drums.

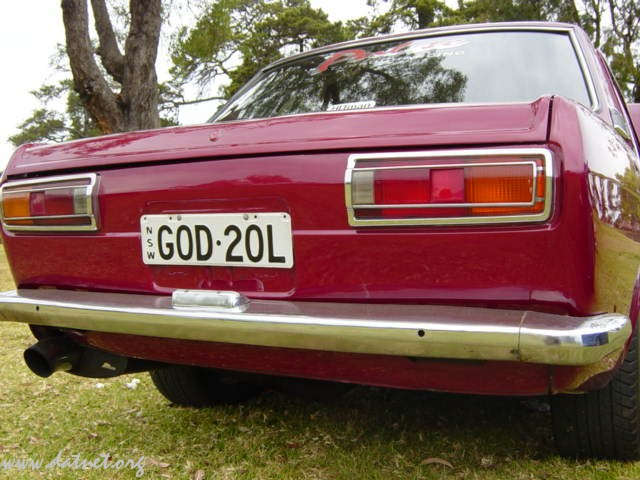

Exhaust: Modified Rear Cross Member to fit up to 4 inch Exhaust system if required. (Currently 3 inch Mandrel
Bent).

Suspension:  Custom Lowered Springs all round with KONI adjustable Shocks.

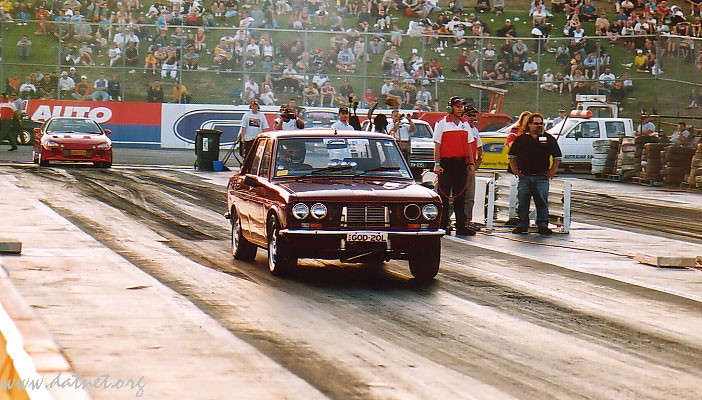

Performance: First and only Street Meet at Eastern Creek on Slicks:
11.71 @ 114 MPH on Pump Fuel

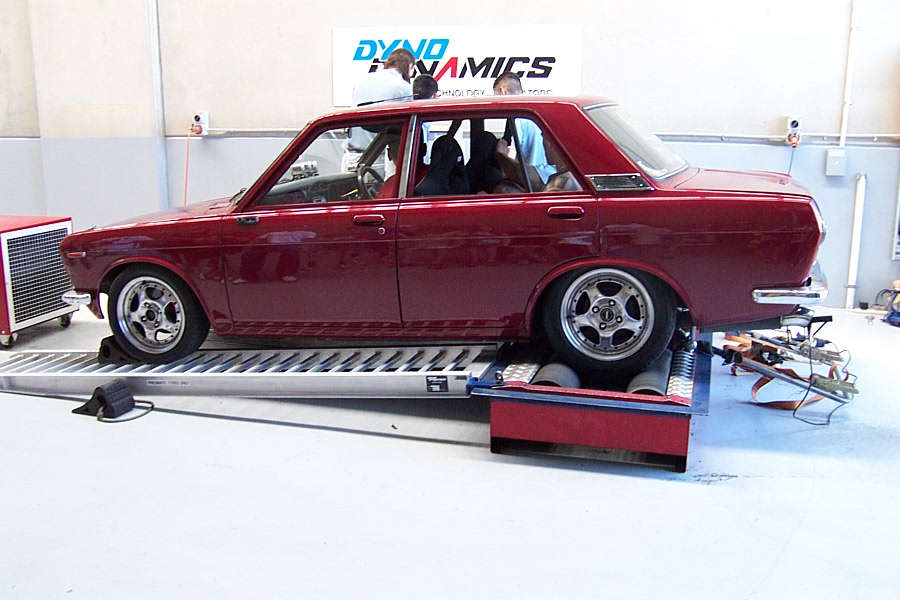

Last Dyno Tune Produced:
272KW on 18psi @ the wheels on Pump Fuel

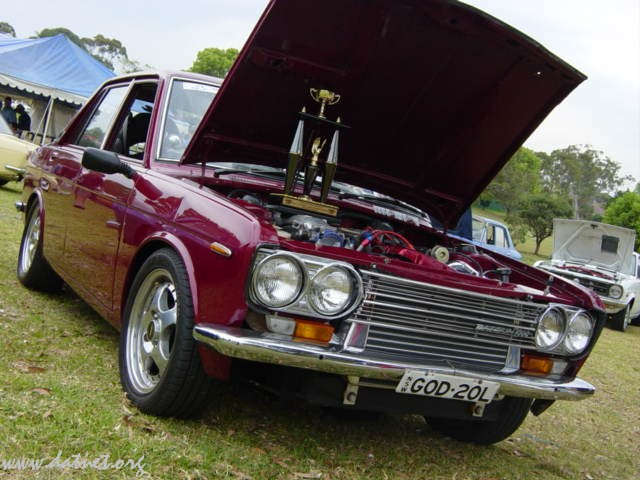

Winner of Summernats 2002 HP Heroes
4 Cylinder Turbo Class - 314.6HP as well winning the datnats dyno day.
