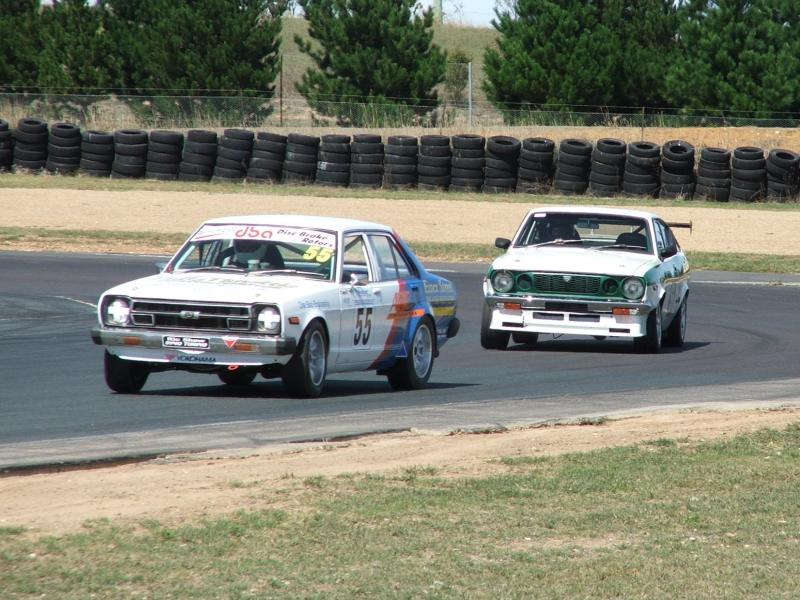

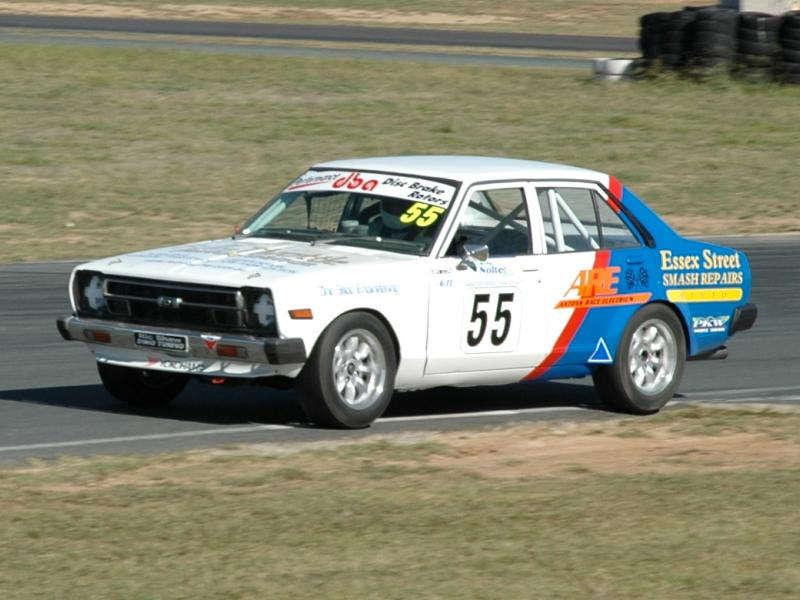

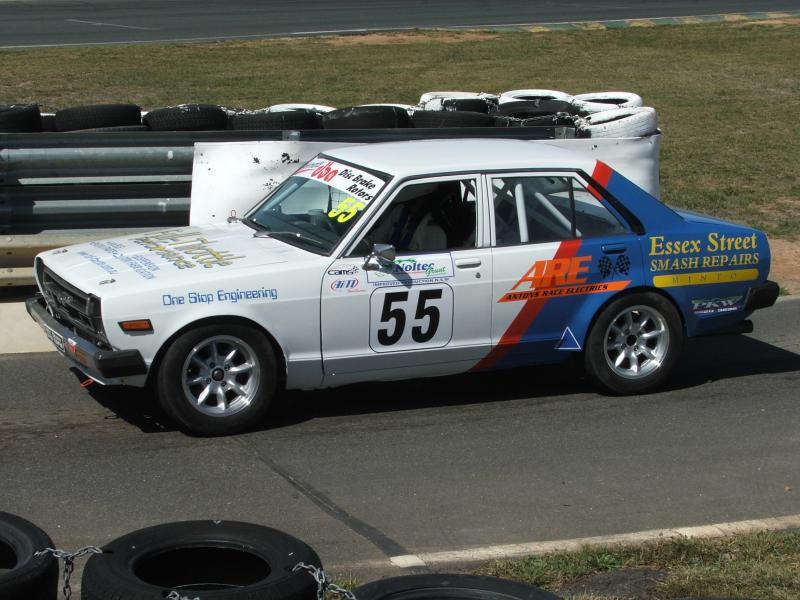

Race Car:
1979 Datsun Sunny (B310),
seam welded and extensive
roll cage.
Engine: FJ20ET turbo
1990cc DOHC 16 valve four cylinder, Nitrided Crank, Shot Peened rods, Forged
Pistons, Big Cams, GTi-R T28 turbo, high mount exhaust manifold, 3 inch
exhaust, custom plenum chamber, bosh 550cc injectors, Motec M4 pro ECU
with Lambda and data logging.
Driveline: VL Commodore
Gearbox, H190 (Gazelle) Diff with Nismo alloy carrier LSD centre.
Lightened flywheel, Tilton Twin plate clutch and dry sumped.
Brakes & Suspension:
Front- Mazda RX7 series IV Calipers with 280mm 300ZX rotors and Hawke Blue
Pads, Rear - VL Commodore rear calipers with Nissan Pintara U12 slotted
disc running bendix metal king pads Reverse mount willwood Pedal box with
remote adjustares and AP racing master cylinders. Braided brake lines through
out.
Front - Height adjustable
spring platforms with Tokico Inserts Rear - Height adjustable spring platforms
with Spax adjustable shocks.
Interior: OMP seat,
Willans 6 point harness, oil temp, oil pressure, volts, engine temp, boost
pressure, fuel pressure and tacho guages in dash.
Wheels: 15x7 Panasport
Ultra lights with Yokohama A032r tyres. |
|
